Light Weight Anchor

Light Weight Anchor

Light weight anchor is used for engineering vessel or drilling unit, used for work anchor or bow anchor for temporary mooring system. It is a kind of High Holding Power Anchor, weight is 25% lighter than a standard anchor; With the “hook” head forcing the flukes to dig in quickly, and the large fluke design providing tremendous holding power.

Material: Cast Steel
Nominal Weight: From 45KG to 6800KG
Finish: Painting Black
Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS etc. Classification Society Certificate
Country of Origin : CHINA

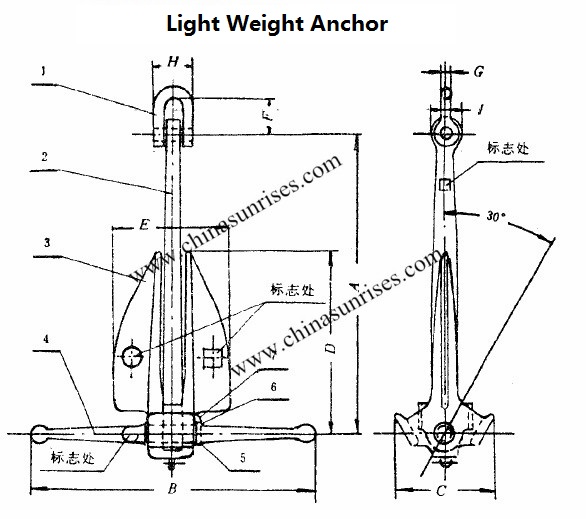

Nominal Weight Size(mm)
(KG) A B C D E
45 1055 1000 310 610 396
70 1185 1130 348 686 450
90 1205 1140 360 737 480
140 1345 1270 414 825 540
180 1460 1380 450 895 584
230 1560 1480 482 952 610
340 1750 1640 560 1068 680
450 1910 1800 610 1165 740
680 2190 2080 700 1340 840
910 2350 2200 762 1435 940
1140 2580 2450 825 1575 1000
1360 2750 2600 880 1680 1060
1500 2830 2680 912 1730 1080
1820 2940 2790 952 1800 1120
2270 2990 2840 984 1830 1130
2730 3150 2990 1040 1930 1200
3180 3200 3030 1070 1960 1240
3630 3250 3070 1105 1980 1276
4100 3380 3200 1150 2060 1330
4540 3490 3310 1180 2130 1370
5000 3600 3420 1226 2200 1400
5500 3710 3520 1264 2260 1450
5900 3810 3610 1296 2320 1500
6400 3910 3710 1334 2390 1540
6800 3990 3790 1362 2440 1570

* Please contact us for final confirmation on above data before you place order.
