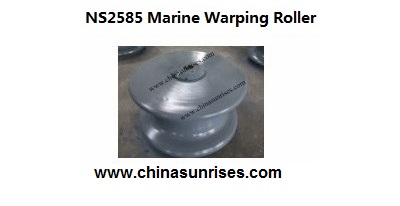

NS2585 Marine Warping Roller

NS2585 Marine Warping Roller


We can manufacture various kinds of roller for fairlead according to your request.
Material: Cast Steel, Cast Iron
Certificate : ABS, BV, DNV, CCS ,mill certificate. etc
Treatment: Sandblasting then Painted Primer or according to Customer’s request
Country of Origin : CHINA

Nominal Wire Rope D1 d0 d7 H s K Weight
Size(mm) 6*24 6*37           KG
150 17 15 240 90 79 154 5 9 24.8
200 22.5 19.5 310 115 99 186 5 10 49.3
250 24 24 380 135 119 230 6 10 92
300 30 28 440 155 129 255 7 12 127
350 37.5 34.5 500 175 149 271 7 13 168
400 41 39 560 185 159 307 7 14 252.5
450 44.5 43 630 210 179 316 7 14 310

Wire rope GB1102 Breaking Load 1550Mpa

 * Please contact us for final confirmation on above data before you place order.
