Project Description

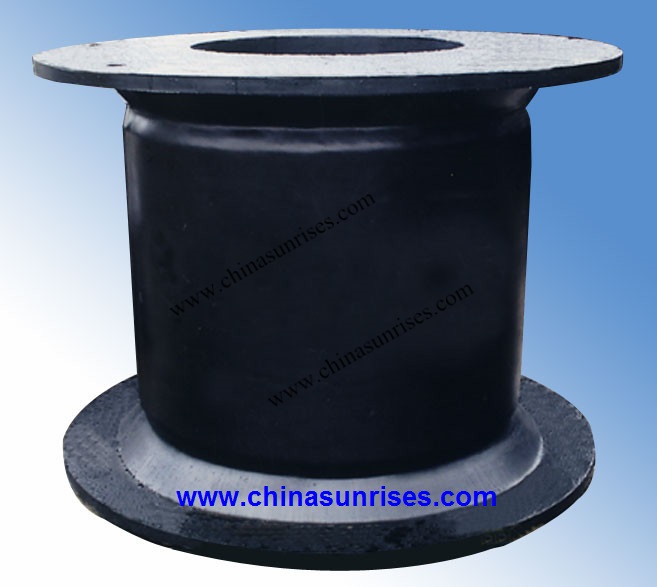

Super Cell Rubber Fender

It is high performance rubber fenders.It have high Energy Absorption,also can keep reaction force in minimum.

It is a cylindrical elastomeric section with steel mounting plates permanently bonded at each end. Under axial loading, the cylindrical section buckles radially. This controlled, multi-directional dispersion of energy combines the high absorption efficiency of the buckling column with a stable geometric shape.

Advantage:
Higher Energy Absorption with lower Reaction Force;
Equal performance in all directions of contact;
Compact profile;
Excellent performance at large berthing angles;
Low friction UHMW pads on frontal frame;
Uniform deformation under shear load extends life;
Excellent track record;
Reasonable structure,hieh performance and good durability;
Usually suitable for large and middle oil dock,coal doaks etc.

Type H D1 D2 Holes

(n)

d h Reaction Energy Absorption
SC400 400 550 650 4 Φ30 25 63.7 11.1
SC500 500 550 650 4 Φ32 25 108 23.4
SC630 630 700 840 4 Φ39 25 175 48
SC800 800 900 1050 6 Φ40 30 280 98
SC1000 1000 1100 1300 6 Φ47 35 445 195
SC1150 1150 1300 1500 6 Φ50 37 589 297
SC1250 1250 1450 1650 6 Φ53 40 696 382

* Please contact us for final confirmation on above data before you place order.
