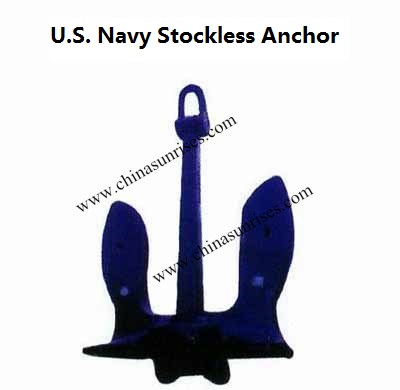

U.S Navy Stockless Anchor



We can provide classification certificate for every U.S Navy Stockless Anchor.
Our design drawings and products of anchors have been approved by ABS, LR, BV, DNV GL, NK, KR, IRS and CCS etc. classification society.

Material of U.S Navy Stockless Anchor: Cast Steel
Nominal Weight: From 300KG to 30000KG
Finish: Painting Black
Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS etc. Classification Society Certificate
Country of Origin : CHINA

Nominal Weight Size(mm)
(KG) B D E F h
300 727 319 562 348 510
400 800 351 619 364 570
500 863 379 666 412 614
600 914 402 708 438 652
750 984 423 763 461 684
800 1008 443 778 483 710
1000 1071 477 839 520 773
1200 1152 507 892 532 822
1300 1184 521 926 567 844
1500 1244 546 962 596 883
1800 1320 580 1021 632 941
2000 1371 601 1058 655 975
2200 1412 521 1092 676 1005
2500 1473 648 1139 706 1050
3000 1564 704 1270 775 1050
3500 1641 725 1275 790 1175
4000 1724 758 1333 826 1228
5000 1884 816 1436 889 1323
6000 1974 867 1528 947 1403
7000 2082 913 1606 996 1480
8000 2171 955 1679 1040 1547
9000 2257 993 1747 1082 1609
10000 2336 1028 1809 1120 1667
11000 2413 1062 1868 1158 1721
12000 2486 1093 1924 1193 1771
13000 2540 1122 1965 1194 1819
14500 2641 1144 2047 1270 1887
15000 2679 1177 2089 1295 1908
16000 2935 1203 2116 1311 1950
18000 2844 1251 2200 1365 2028
20000 2946 1296 2280 1412 2100
22500 3060 1345 2370 1463 2134
25000 3174 1396 2456 1521 2262
30000 3371 1483 2628 1631 2404

* Please contact us for final confirmation on above data before you place order.
