Project Description

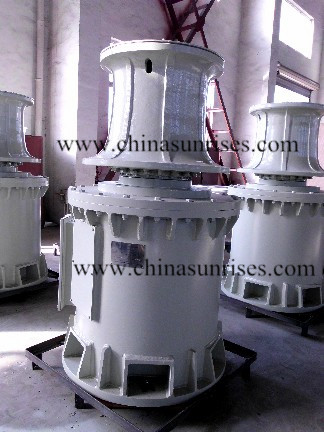

Vertical Electric Capstan

Marine Electric/Hydraulic Mooring Rope Capstan can apply force to ropes, cables, and hawsers. Capstan is powered by electrically, hydraulically, pneumatically, or via an internal combustion engine

Drive: Electric/ Hydraulic
Warping head of the capstan uses cast steel.
Rated pull of the 1st layer can reach from 3MT to 15MT.
 Max wire speed of this capstan winch is 18m/min.
Local control is available for customers.
Warping Load: 5 ~ 250KN
Warping Speed: ≥ 18 m/min
Wire Dia.: Ø11 ~ Ø46mm
Paint: According to your requirements
Lead Time: 60 days to 120 days after order confirmation.
Certificate : CCS, BV, DNV, ABS, GL, LR, NK, RINA, mill certificate etc
Country of Origin : CHINA

Warping Load
KN
Warping Speed
m/min
Wire Dia
mm
Electric Motor
KW
Hydraulic Motor
KW
5 ≥18 Ø11 3/1.2 5.5
10 ≥18 Ø11 4.3/1.7 7.5
20 ≥18 Ø15 7.5/7.5/5 15
30 ≥18 Ø17.5 16/16/11 18.5
40 ≥18 Ø20.5 16/16/11 18.5
50 ≥18 Ø20.5 22/22/16 30
70 ≥15 Ø26 30/30/22 45
100 ≥15 Ø28 45/45/30 55
120 ≥15 Ø32.5 60/60/45 75
150 ≥15 Ø36.5 60/60/45 90
200 ≥15 Ø40 75/75/36 110
250 ≥12 Ø46 75/75/36 110

* Please contact us for final confirmation on above data before you place order.
