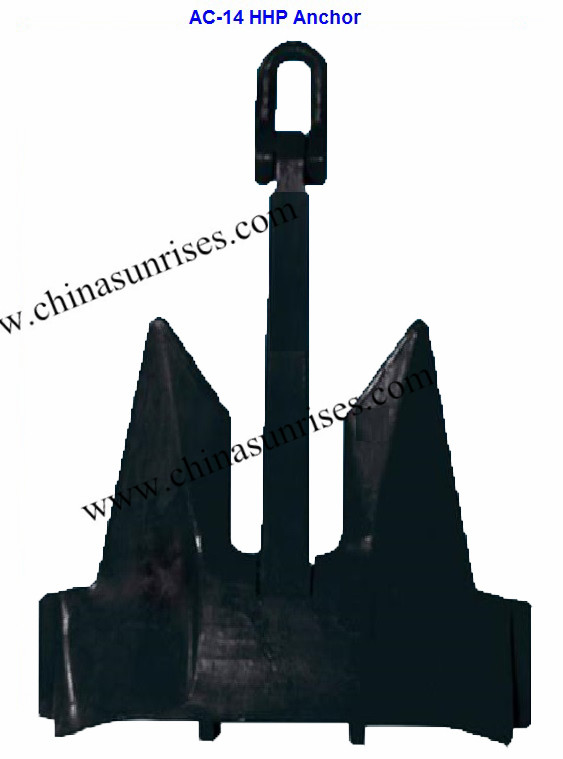

AC-14 HHP Anchor

AC-14 HHP ANCHOR / AC-14 High Holding Power Anchor

Material: Cast Steel
Nominal Weight: From 75KGS to 30000KGS
Finish: Painting Black
Certificate: LR, ABS, BV,DNV GL, KR, NK, IRS,RINA and CCS etc. Classification Society Certificate

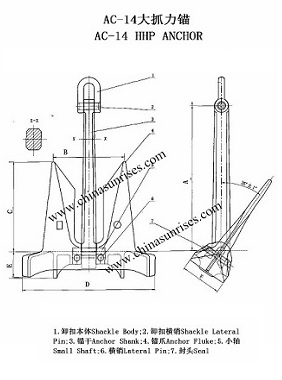

1.Shackle Body;
2.Shackle Lateral Pin;
3.Anchor Shank;
4.Anchor Fluke;
5.Small Shaft;
6.Lateral Pin;
7.Seal

Material for AC-14 H.H.P. Anchor Accessories

Part Name	Material
Shackle Body、 Anchor Shank、Anchor Fluke、Seal	Cast Steel	ZG 230-450H
Shackle Body、 Anchor Shank	Forging Steel	20#
Shackle Lateral Pin、Small Shaft、 Lateral Pin、Seal	Rod	20#

Certificate : Various types of Classification Society Certificates can be supplied such as :LR, NK,ABS, DNV GL, KR,BV,RINA and CCS etc.
Country of Origin : CHINA

Ask for price

Nominal Weight	Size(mm)
(KG)	A	B	C	D	E	F
56	612	298	376	555	109	170
100	745	364	458	675	130	200
180	909	442	558	822	162	252
300	1075	524	660	975	194	298
428	1213	590	745	1098	216	336
675	1410	690	868	1278	250	390
750	1450	700	878	1315	256	396
910	1560	760	957	1410	273	430
970	1592	775	978	1445	284	440
1080	1650	805	1014	1495	294	455
1305	1760	858	1082	1595	313	485
1440	1818	885	1118	1645	324	505
1710	1925	940	1184	1745	343	532
1845	1975	965	1215	1785	347	546
2100	2065	1005	1268	1865	354	570
2475	2175	1062	1340	1970	385	602
2835	2265	1105	1393	2055	399	625
3550	2455	1198	1508	2225	438	680
3940	2540	1240	1562	2300	453	705
4500	2655	1295	1632	2405	473	735
4840	2720	1330	1670	2465	490	755
5610	2858	1396	1758	2590	509	790
6000	2922	1426	1796	2646	515	810
6900	3062	1496	1884	2775	545	848
7800	3190	1558	1962	2890	569	884
8300	3256	1590	2002	2950	574	902
9300	3382	1652	2080	3064	603	936
9900	3452	1686	2124	3128	616	956
10575	3523	1720	2166	3192	628	976
11100	3589	1720	2166	3192	628	976
11700	3650	1782	2245	3308	648	1010
12300	3683	1794	2260	3330	655	1018
12900	3772	1842	2320	3418	670	1044
13500	3830	1870	2355	3470	682	1060
14100	3885	1896	2389	3520	689	1076
14700	3940	1924	2423	3570	700	1090
15400	4002	1954	2461	3626	710	1108
16100	4062	1982	2498	3680	721	1125
16900	4128	2016	2538	3740	721	1144
17800	4200	2050	2583	3806	725	1162
18800	4277	2088	2630	3875	729	1185
20000	4350	2101	2694	3945	729	1185
25000	5046	2437	3125	4577	846	1375
