Project Description

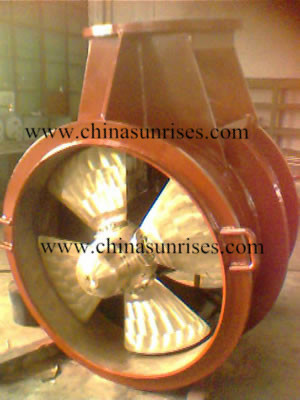

Control Pitch Propeller Bow Thruster

Certificate : CCS, BV, ABS, GL, NK,mill certificate etc
Country of Origin : CHINA

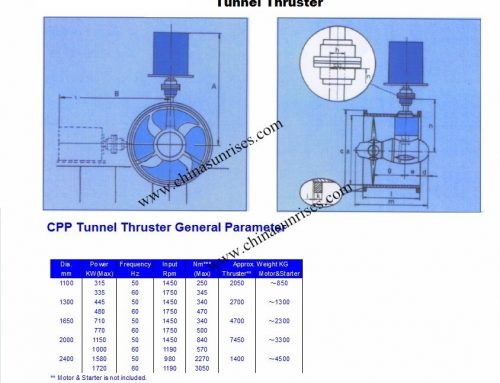

Main Parameters:

Type Propeller Diameter Power Frequency Input Speed To torque of zero Pitch Moment of inertia Weight(about)kg
mm kw max Hz RPm Nm max kgm2 Tunnel Thruster Drive Motor and start up tank
JYK11CP 1000~1200 -320 50 1480 160 1.2 1300 850
-380 60 1780 220
JYK13CP 1200~1400 -445 50 1480 340 1.9 2500 1300
-480 60 1780 470
JYK16CP 1400~1800 -590 50 1480 340 4.5 3700 2300
-800 60 1780 500
JYK20CP 1800~2100 -880 50 1480 840 11.3 6250 3300
-1200 60 1190 570
JYK24CP 2100~2600 -1580 50 980 2270 28.8 12500 4500
-1720 60 1190 3050
JYK28CP 2600~3000 -2240 50 980 3935 65.0 20500 5000
-2010 60 880 3300
JYK33CP 3000~3400 -3500 50 590 5600 358.0 31000 6000
-3500 60 590 5600

* For input shaft ** does not include motor and starter
*** input shaft speed 100% of Torque
 * Please contact us for final confirmation on above data before you place order.

Ask for price
