DIN81915-1998 Bulwark Mounted Ship Chock Type B

DIN81915-1998 Bulwark Mounted Ship Chock Type A,Type B and Type C is available.

Material: Cast Steel
Certificate : BV,CCS,DNV,ABS,mill certificate etc
Treatment: Painted Primer or Black Bitumen Paint or according to Customer’s request
Country of Origin : CHINA

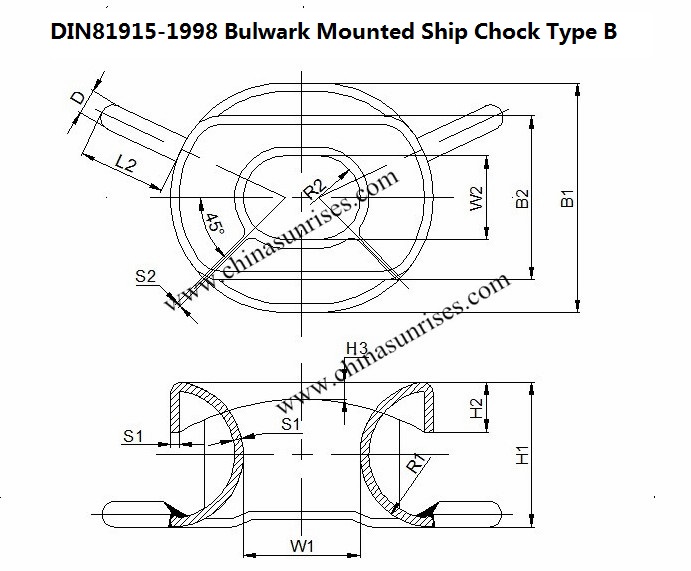

Type B

Type	Dimensions (mm)														Weight
	B1	B2	D	H1	H2	H3	L1	L2	R1	R2	S1	S2	W1	W2	KG
B3	390	275	40	250	75	32	450	140	125	70	14	7	200	140	45
B5	480	340	45	300	80	38	550	160	150	90	16	8	250	180	78
B8	585	415	50	360	90	45	680	180	180	112	18	9	320	225	126
