DIN81915-1998 Bulwark Mounted Ship Chock Type A

DIN81915-1998 Bulwark Mounted Ship Chock Type A ,Type B and Type C is available.

Material: Cast Steel
Certificate : BV,CCS,DNV,ABS,mill certificate etc
Treatment: Painted Primer or Black Bitumen Paint or according to Customer’s request
Country of Origin : CHINA

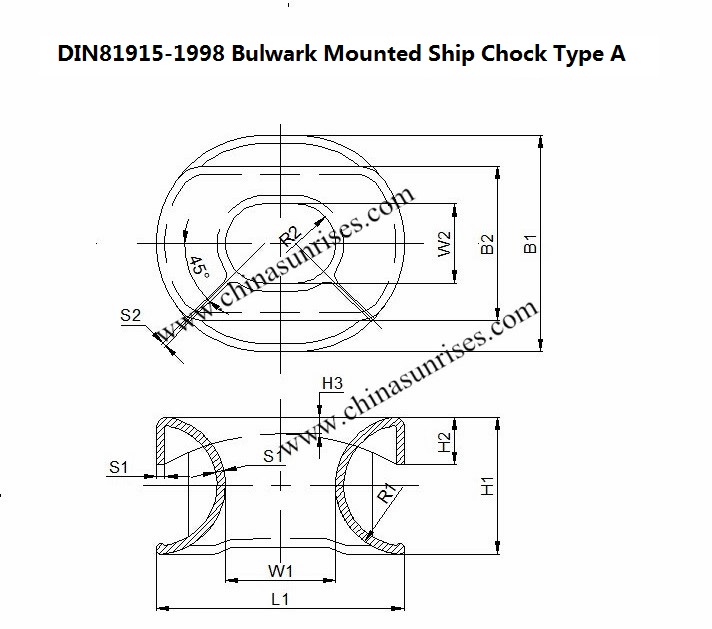

Type A

Type	Dimensions (mm)												Weight
	B1	B2	H1	H2	H3	L1	R1	R2	S1	S2	W1	W2	KG
A2	315	225	200	70	25	360	100	57.5	12	6	160	115	26
A3	390	275	250	75	32	450	125	70	14	7	200	140	42
A5	480	340	300	80	38	550	150	90	16	8	250	180	74
A8	585	415	360	90	45	680	180	112	18	9	320	225	120
A12	710	500	440	110	55	840	220	135	20	10	400	270	185
A20	840	595	520	130	65	1,020	260	160	22	11	500	320	285
A32	1,100	800	700	150	80	1,300	350	200	35	20	600	400	795
