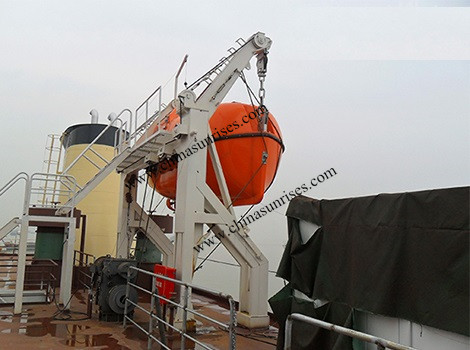

Gravity Luffing Arm Type Davit

Gravity Luffing Arm Type Davit

Gravity luffing arm type davit could launch the boat by its own gravity to the surface of water, also, which could pour down the boat outboard while it is loss of electric power; while launching, the passengers could pull the remote control cable in the boat to launch or stop the life / rescue boat or raft. As well, the crews can operate it on the deck. This device meets the SOLAS 1974, the international life-saving appliance rules LSA and IMO, MSC81 (70) and other regulatory requirements.

Product Name : Gravity Luffing Arm Type Davit
Product No. : 1.3.1
Load: From 40 KN to 120 KN
Certificate : Various types of Classification Society Certificates can be supplied such as : CCS,BV,ABS,DNV,LR,RINA etc.
Country of Origin : CHINA

Model Max. Safety Working Load(KN) Hoisting Load(KN) Max Width(mm) Max Height(mm) Max Weight(kg)
40KN 40 17 2800 5200 3490
50KN 50 30.5 2800 5200 4300
70KN 70 35 3150 6200 4730
85KN 85 38 3430 6600 5025
120KN 120 60 4150 8200 6500

* Please contact us for final confirmation on above data before you place order.
