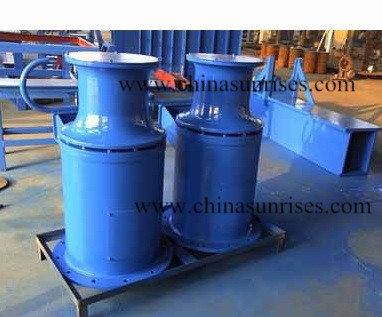

Pneumatic Capstan

Pneumatic / Electric / Hydraulic Capstan

Marine Pneumatic / Electric / Hydraulic Mooring Rope Capstan can apply force to ropes, cables, and hawsers. Capstan is powered by electrically, hydraulically, pneumatically, or via an internal combustion engine.

Drive: Electric/ Hydraulic
Warping head of the capstan uses cast steel.
Rated pull of the 1st layer can reach from 3MT to 15MT.
Max wire speed of this capstan winch is 18m/min.
Local control is available for customers.
Warping Load: 5 ~ 250KN
Warping Speed: ≥ 18 m/min
Wire Dia.: Ø11 ~ Ø46mm
Paint: According to your requirements
Lead Time: 60 days to 120 days after order confirmation.
Certificate : CCS, BV, DNV, ABS, GL, LR, NK, RINA, mill certificate etc
Country of Origin : CHINA

Warping Load KN	Warping Speed m/min	Wire Dia mm	Electric Motor KW	Hydraulic Motor KW
5	≥18	Ø11	3/1.2	5.5
10	≥18	Ø11	4.3/1.7	7.5
20	≥18	Ø15	7.5/7.5/5	15
30	≥18	Ø17.5	16/16/11	18.5
40	≥18	Ø20.5	16/16/11	18.5
50	≥18	Ø20.5	22/22/16	30
70	≥15	Ø26	30/30/22	45
100	≥15	Ø28	45/45/30	55
120	≥15	Ø32.5	60/60/45	75
150	≥15	Ø36.5	60/60/45	90
200	≥15	Ø40	75/75/36	110
250	≥12	Ø46	75/75/36	110
